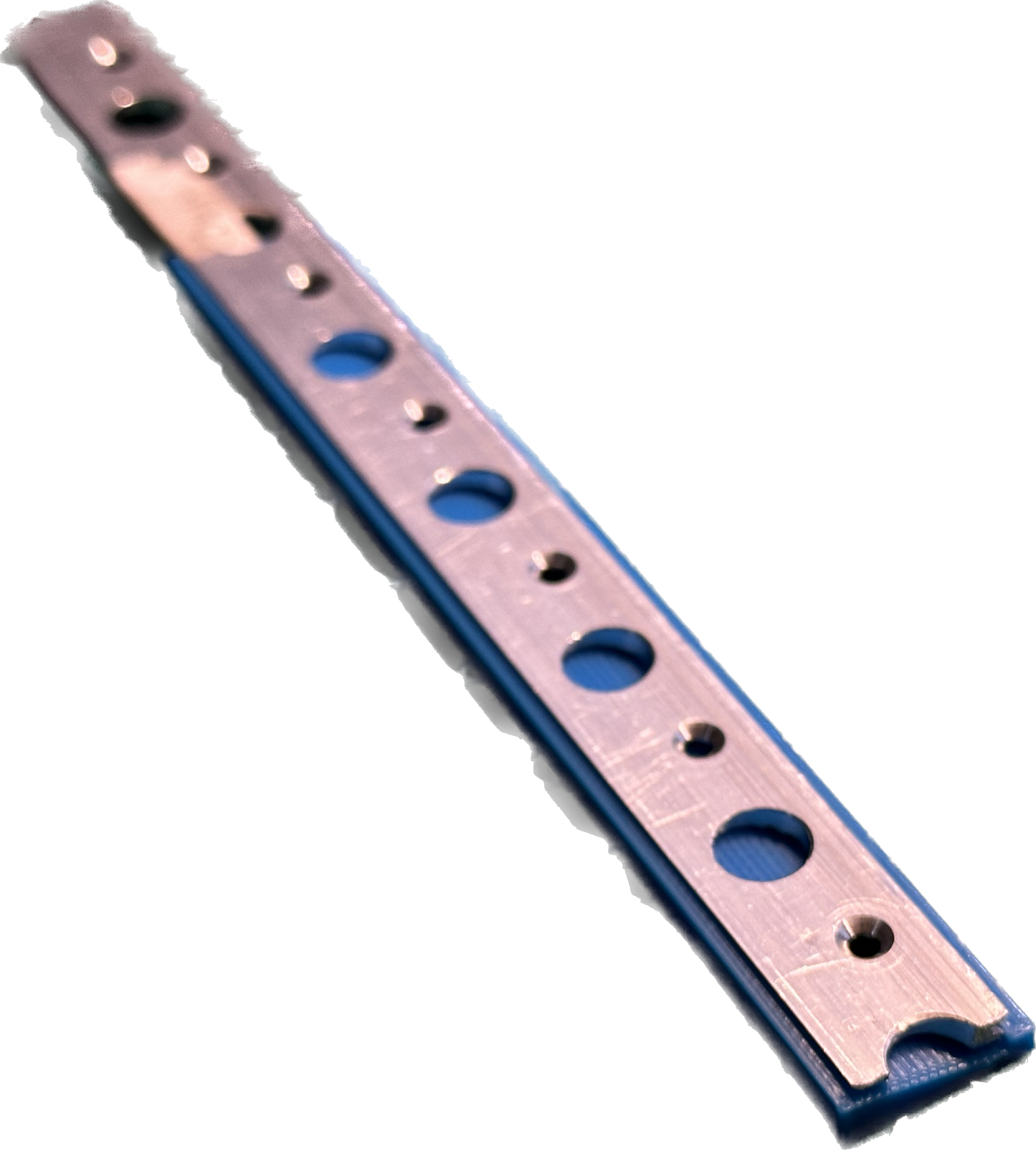

Trailing Edge Wedge Jig

This jig holds the trailing edge wedge parallel to the drill press base so it can be countersunk perfectly. This will allow a good countersink to improve the quality of the trailing edge. When countersinking the wedge it is very easy to bend the wedge, especially if too much pressure is used, totally ruining the material. Countersinking with the minimum pressure is made possible by this jig.

Key Features:

Precision Alignment: The Trailing Edge Wedge Jig ensures that the wedge is held parallel to the drill press base, resulting in perfectly countersunk holes every time. This alignment is crucial for maintaining the integrity and aesthetics of the trailing edge.

Material Protection: The design of the jig minimizes the risk of bending the wedge during the countersinking process.

Reduced Pressure Requirement: With this jig, countersinking can be achieved with minimal pressure, significantly reducing the risk of damaging the material. This feature is particularly beneficial for achieving a high-quality finish without compromising the structure of the wedge.

Enhanced Durability: Built to withstand the rigors of frequent use, the jig is made from high-quality materials that ensure longevity and consistent performance.

Ease of Use: The user-friendly design makes it simple to set up and operate, ensuring that even those new to aviation fabrication can achieve professional results.

Benefits:

• Improved Quality: By ensuring a perfect countersink every time, the Trailing Edge Wedge Jig significantly elevates the quality of your aviation projects.
• Time Efficiency: The ease of use and precision alignment save valuable time in the workshop, allowing for quicker project completion.
• Cost-Effective: By reducing material waste due to bending or improper countersinking, this jig is a cost-effective solution for any aviation project.

Elevate your aviation projects with the Trailing Edge Wedge Jig – precision, protection, and professionalism in one innovative tool.
